PRODUCT CATALOG

PE coated aluminum coil

DATE:2018-06-08 16:06

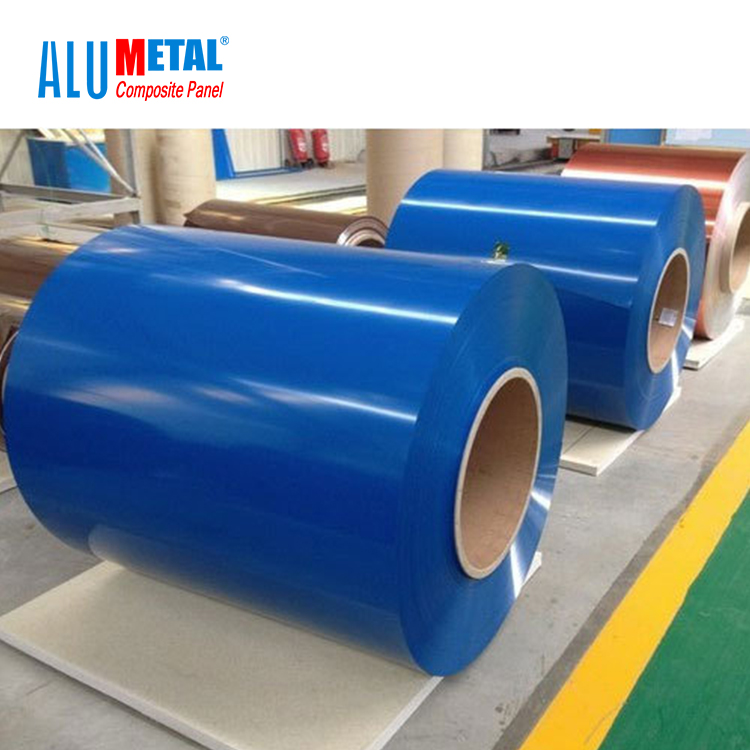

PE Coated aluminum coil


DESCRIPTION

Shanghai Alumetal offers such an extensive selection of painted aluminum coil . Alumetal can supply you with virtually any specification, color or finish that you require. In addition to our standard colors and specifications, Alumetal can develop customized material programs specially tailored to meet your manufacturing needs.

SPECIFICATION


Substrates: Aluminium (AA1100, 3003, 3004, 3105, 5006, 5052, 8011, etc), etc.
Thickness: 0.08-4.0mm
Width: <1800mm
Coils core diameter: 150mm ,405mm, 505mm, 508mm, 510mm
Coating thickness: PVDF >=25micron POLYESTER>=18micron
Color standard: E < 2 or it is not obvious by eyeballing
Pencil hardness: > 2HB
Coating adhesive: not lower than first grade Impact: no any crack (50kg/cm, ASTMD-2794:1993)
Bend stength: >100 times
Boiling point: no any distortion and color change (in the 99 more or less 1 degree
water, then cooling 2 hours)
Corrosive: surface deep in the 5% muriatic acid and 5% NaCL, interior deepin the 2% muriaticacid and 2% NaCL, after 48 hours, no change


FEATURE
Excellent weather-proof durability
Anti-ultraviolet
High erosion resistance
Stable color and gloss
Good mechanical processing performance
Abrasion resistance
Anti-impact
High flexibility


APPLICATION
1)Exterior applications such as: wall cladding, facades, roofs and canopies, ACP, tunnels, column covers or renovations etc
2)Interior applications such as: wall cladding, ceilings, bathrooms, kitchens and balconies etc
3)Advertisement and market applications such as: display platforms, signboards, fascias and shop fronts etc
4)Transport and industry application etc



Welcome to send your inquiry for best price and free sample
